How to master row concatenation in SQL for OutSystems apps

Introduction: The many-to-one challenge

Ever found yourself needing to display a neat, comma-separated list of tags, names, or categories on a single screen? It’s a common scenario: you have a one-to-many relationship in your data and want to present all those "many" records inside a single, clean text field.

For instance, you might want to:

• List all instructors teaching a school course.
• Show multiple degrees earned by a student.
• Aggregate customer emails for a specific city.

While you could fetch the primary record and run separate calls or loop through logic in your OutSystems client layer, that quickly tanks performance. Solving this directly inside the database using Advanced SQL keeps your app snappy, avoids multiple network fetches, and keeps your front-end logic clean.

Quick teaser: Want to skip writing raw SQL altogether? OutSystems Mentor can generate the entire screen, server action, and database query for you in under 2 minutes using natural language! Stick around — we’ll show you exactly how that magic happens at the end of this article!

Now, let’s break down the manual SQL techniques you need in your toolkit.

The modern standard: STRING_AGG()

If you're working on a modern database setup, STRING_AGG() is your primary, most efficient, and cleanest method for concatenating rows into a single string.

Step-by-step implementation in OutSystems

1. Create a Structure: Add a new Structure in OutSystems with a single Text attribute to hold your concatenated string.

2. Define query outputs: Include your target entity along with your newly created structure in your advanced SQL query's output parameters.
3. Write the JOIN sub-query: Build a sub-query using STRING_AGG() to group and join records. STRING_AGG() conveniently ignores NULL values, so you won't end up with awkward trailing commas.
4. Map the alias: Give the concatenated column an explicit alias (e.g., INSTRUCTORS_LIST_IN_CSV) matching your Structure attribute and ensure the sub-query itself has an alias (e.g., TEMPSUBQUERY).
5. Add the alias: Add the column alias to your main SELECT statement to map it to your Structure.

Code example

SQL

SELECT
  {Course}.[Id],
  {Course}.[Title],
  INSTRUCTORS_LIST_IN_CSV
FROM {Course}
LEFT JOIN (
  SELECT
    {InstructorPerCourse}.[CourseId],
    STRING_AGG({Instructor}.[FullName], ', ' ORDER BY {Instructor}.[FullName])

AS INSTRUCTORS_LIST_IN_CSV
  FROM {InstructorPerCourse}
  INNER JOIN {Instructor}
    ON ({InstructorPerCourse}.[InstructorId] = {Instructor}.[Id])
  GROUP BY {InstructorPerCourse}.[CourseId]
) AS TEMPSUBQUERY
  ON ({Course}.[Id] = TEMPSUBQUERY.[CourseId])



SQL

SELECT
  {Course}.[Id],
  {Course}.[Title],
  INSTRUCTORS_LIST_IN_CSV
FROM {Course}
LEFT JOIN (
  SELECT
    {InstructorPerCourse}.[CourseId],
    STRING_AGG({Instructor}.[FullName], ', ') WITHIN GROUP (ORDER BY {Instructor}.[FullName])
AS INSTRUCTORS_LIST_IN_CSV
  FROM {InstructorPerCourse}
  INNER JOIN {Instructor}
    ON ({InstructorPerCourse}.[InstructorId] = {Instructor}.[Id])
  GROUP BY {InstructorPerCourse}.[CourseId]
) AS TEMPSUBQUERY
  ON ({Course}.[Id] = TEMPSUBQUERY.[CourseId])


Note: Both databases use STRING_AGG(). However, when ordering concatenated items, PostgreSQL places the ORDER BY clause directly inside the STRING_AGG() arguments, whereas SQL Server requires the WITHIN GROUP (ORDER BY ...) clause appended to the function.

Query output

Here is an example of what the data would look like coming out of that query:

The legacy workaround: STUFF() and FOR XML PATH()

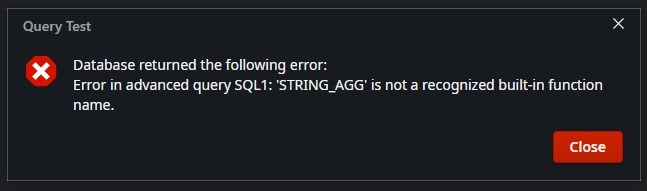

If you're supporting OutSystems 11 environments connected to SQL Server 2016 or older, STRING_AGG() won't be available and will throw an error.

In SQL Server, developers historically relied on STUFF() combined with FOR XML PATH().

How it works

• FOR XML PATH() concatenates values into a single XML-formatted string. However, it leaves an unwanted leading separator (like ,) and encodes special characters, meaning & will become &.
• STUFF() strips out the leading comma and space by deleting two characters starting at position 1.
• Appending .value('(./text())[1]', 'varchar(max)') decodes any escaped XML entities back to raw text.

Code example

SQL

SELECT
  {Student}.[Id],
  {Student}.[FullName],
  string_agg({Degree}.[Label], ', ' ORDER BY {Degree}.[Label] ASC) AS DEGREES_LIST
FROM {Student}
LEFT JOIN {StudentDegree}
  ON {StudentDegree}.[StudentId] = {Student}.[Id]
LEFT JOIN {Degree}
  ON {StudentDegree}.[DegreeId] = {Degree}.[Id]
GROUP BY
  {Student}.[Id],
  {Student}.[FullName]



SQL

SELECT
  {Student}.*,
  STUFF(
    (
      SELECT ', ' + {Degree}.[Label]
      FROM {StudentDegree}
      INNER JOIN {Degree}
        ON ({StudentDegree}.[DegreeId] = {Degree}.[Id])
      WHERE {StudentDegree}.[StudentId] = {Student}.[Id]
      ORDER BY {Degree}.[Label] ASC
      FOR XML PATH (''), TYPE
    ).value('(./text())[1]', 'varchar(max)'),
    1, 2, ''
  ) AS DEGREES_LIST
FROM {Student}


Query output

Here is an example of what the data would look like coming out of that query:

Head-to-head: STRING_AGG() vs. STUFF() + FOR XML PATH()

Both approaches get the job done, but they differ significantly in syntax, performance, and compatibility.

The API alternative: Structuring data as JSON

When building backend endpoints or preparing records for REST APIs, you often need a structured JSON array rather than a plain comma-separated string.

How to achieve it

• SQL Server uses the built-in FOR JSON PATH clause to convert query results into JSON strings.


• PostgreSQL uses JSON functions such as json_agg() combined with json_build_object() or row_to_json() to return structured JSON arrays.

Use case 1 - Concatenating into a JSON string column

If you want your query output to contain standard columns alongside one attribute containing a JSON array string:

SQL

SELECT
  {Student}.[Id],
  {Student}.[FullName],
  (
    SELECT COALESCE(
      json_agg(
        json_build_object('Label', D.[Label])
      ),
      '[]'::json
    )::text
    FROM {StudentDegree} SD
    INNER JOIN {Degree} D ON SD.[DegreeId] = D.[Id]
    WHERE SD.[StudentId] = {Student}.[Id]
  ) AS Degrees
FROM {Student}


SQL

SELECT
  {Student}.[Id],
  {Student}.[FullName],
  COALESCE((
    SELECT D.[Label]
    FROM {StudentDegree} SD
    INNER JOIN {Degree} D ON SD.[DegreeId] = D.[Id]
    WHERE SD.[StudentId] = {Student}.[Id]
    ORDER BY D.[Label] ASC
    FOR JSON PATH
  ), '[]') AS Degrees
FROM {Student}


Use case 1 - Output example

JSON

[{"Label":"Bachelor of Arts"},
{"Label":"Master of Business Administration"}]


JSON

[{"Label":"Bachelor of Engineering"},
{"Label":"Master of Science"},
{"Label":"PhD in Physics"}]


JSON

[]


Use case 2 - Generating a full API payload

If you want to wrap an entire dataset into a single structured JSON response body directly from the database:

SQL

SELECT json_build_object(
  'Students', json_agg(
    json_build_object(
      'Id', S.Id,
      'FullName', S.FullName,
      'Degrees', (
        SELECT COALESCE(
          json_agg(json_build_object('Label', D.Label)),
          '[]'::json
        )
        FROM {StudentDegree} SD
        INNER JOIN {Degree} D ON SD.DegreeId = D.Id
        WHERE SD.StudentId = S.Id
      )
    )
  )
)
FROM {Student} S;


SQL

SELECT
  S.[Id],
  S.[FullName],
  COALESCE(
    JSON_QUERY((
      SELECT D.[Label]
      FROM {StudentDegree} SD
      INNER JOIN {Degree} D ON SD.[DegreeId] = D.[Id]
      WHERE SD.[StudentId] = S.[Id]
      ORDER BY D.[Label] ASC
      FOR JSON PATH
    )),
    JSON_QUERY('[]')
  ) AS Degrees
FROM {Student} S
FOR JSON PATH, ROOT('Students');


Use case 2 - Output example

This query produces a complete JSON like this:

JSON

  {
  "Students": [
    {
      "Id": 500,
      "FullName": "Sarah Connor",
      "Degrees": [
        {
          "Label": "Bachelor of Arts"
        },
        {
          "Label": "Master of Business Administration"
        }
      ]
    },
    {
      "Id": 501,
      "FullName": "Tony Stark",
      "Degrees": [
        {
          "Label": "Bachelor of Engineering"
        },
        {
          "Label": "Master of Science"
        },
        {
          "Label": "PhD in Physics"
        }
      ]
    },
    {
      "Id": 502,
      "FullName": "Bruce Wayne",
      "Degrees": []
    }
  ]
}

In summary, FOR JSON PATH produces the standard format used by most web APIs where the output needs structured, nested data rather than a flat, delimited string.

The ultimate speed hack: Let OutSystems Mentor do it for you

Now that you understand how these queries work under the hood, let's look at how you can

bypass manual Advanced SQL coding entirely.

With OutSystems Mentor, the AI assistant in OutSystems Developer Cloud (ODC), you can get this entire feature designed and implemented in under two minutes using simple natural language prompts like simply typing: ‘Create a screen that lists all instructors for each course but shows one row per course using Advanced SQL to optimize the data fetch’.

What Mentor does

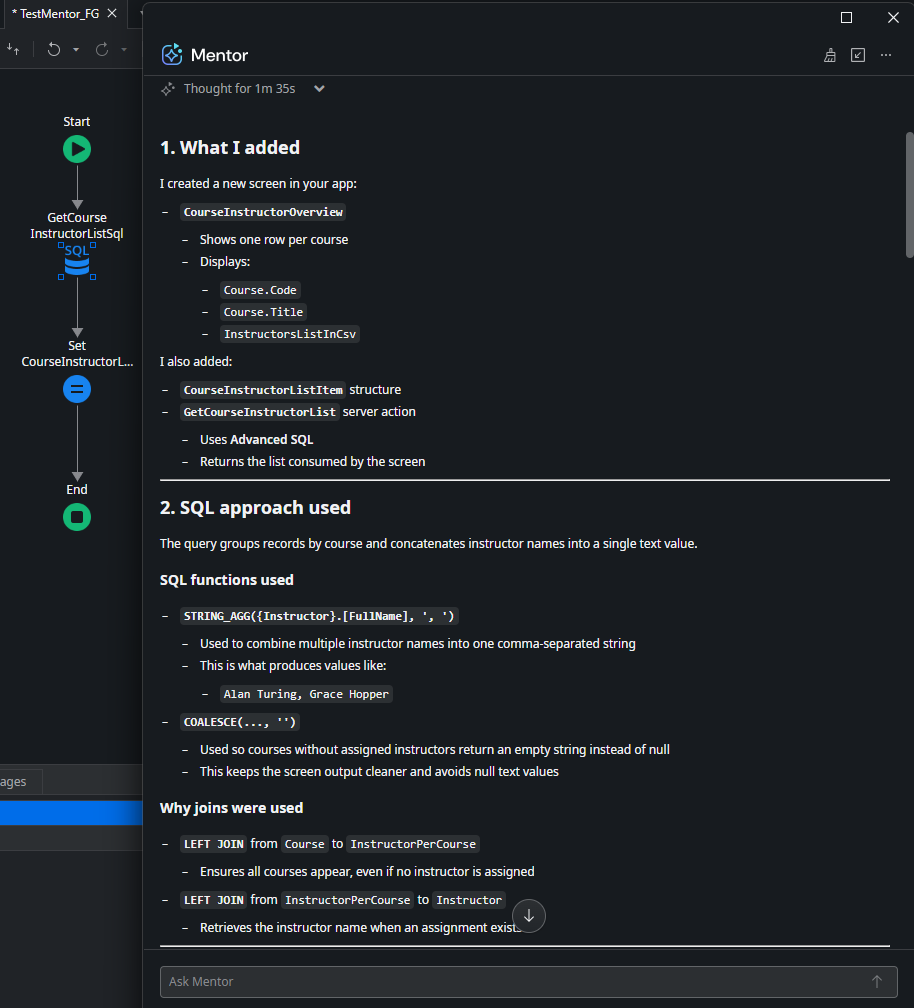

When you write the above prompt, Mentor doesn't just write a raw snippet – it builds the entire feature end-to-end:

1. Creates the UI Screen: Generates the frontend table layout with all required controls.
2. Defines the Structure: Automatically creates the output data structure needed for the aggregated list.
3. Implements the Server Action: Generates optimized, production-ready Advanced SQL tailored specifically for ODC's Aurora PostgreSQL database engine.

Here is the clean, efficient code Mentor generated to group the records and concatenate the rows:

SQL

SELECT
{Course}.[Id] AS CourseId,
{Course}.[Title] AS CourseTitle,
COALESCE(STRING_AGG({Instructor}.[FullName], ', '), '') AS InstructorsListInCsv
FROM {Course}
LEFT JOIN {InstructorPerCourse}
ON {InstructorPerCourse}.[CourseId] = {Course}.[Id]
LEFT JOIN {Instructor}
ON {Instructor}.[Id] = {InstructorPerCourse}.[InstructorId]
GROUP BY
{Course}.[Id],
{Course}.[Title]
ORDER BY
{Course}.[Id]


Why Mentor's approach is impressive

Mentor follows enterprise development best practices:

• STRING_AGG(): Correctly aggregates instructor names into a clean CSV string.
• COALESCE(): Prevents NULL values on screens by returning empty strings for courses without assigned instructors.
• Smart Joins: Uses LEFT JOIN chains to ensure courses without instructors still show up in the list.

‍

Compare, learn, and iterate

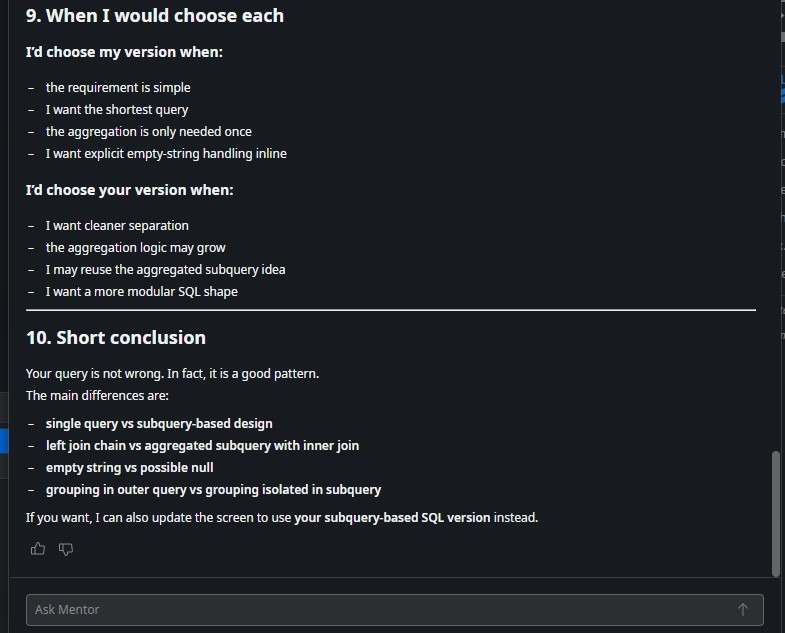

Even better, if you have your own SQL draft, you can ask Mentor to run a comparative analysis. It breaks down differences in join behaviors, query efficiency, performance tradeoffs, and readability so you can learn while you build!

By using natural language, you save time, see justified technical approaches, and can even ask for comparisons. It’s how OutSystems turns AI generation into mission-critical software — landing business value quickly while preserving your flexibility to customize.

‍

Conclusion: Choose the right tool for the job

This article explored powerful SQL techniques you can use to master row concatenation, from the modern standard to legacy workarounds and API-focused solutions.

By understanding these techniques you can fetch related data efficiently and build high-performance, responsive OutSystems applications. Depending on your setup:

• Use STRING_AGG() for modern database setups (ODC PostgreSQL or SQL Server 2017+).
• Use STUFF() + FOR XML PATH() when maintaining legacy SQL Server databases.
• Use JSON aggregation functions (json_agg or FOR JSON PATH) when building REST API models.
• Use OutSystems Mentor whenever you want to turn natural language into full-stack, mission-critical software in seconds.
